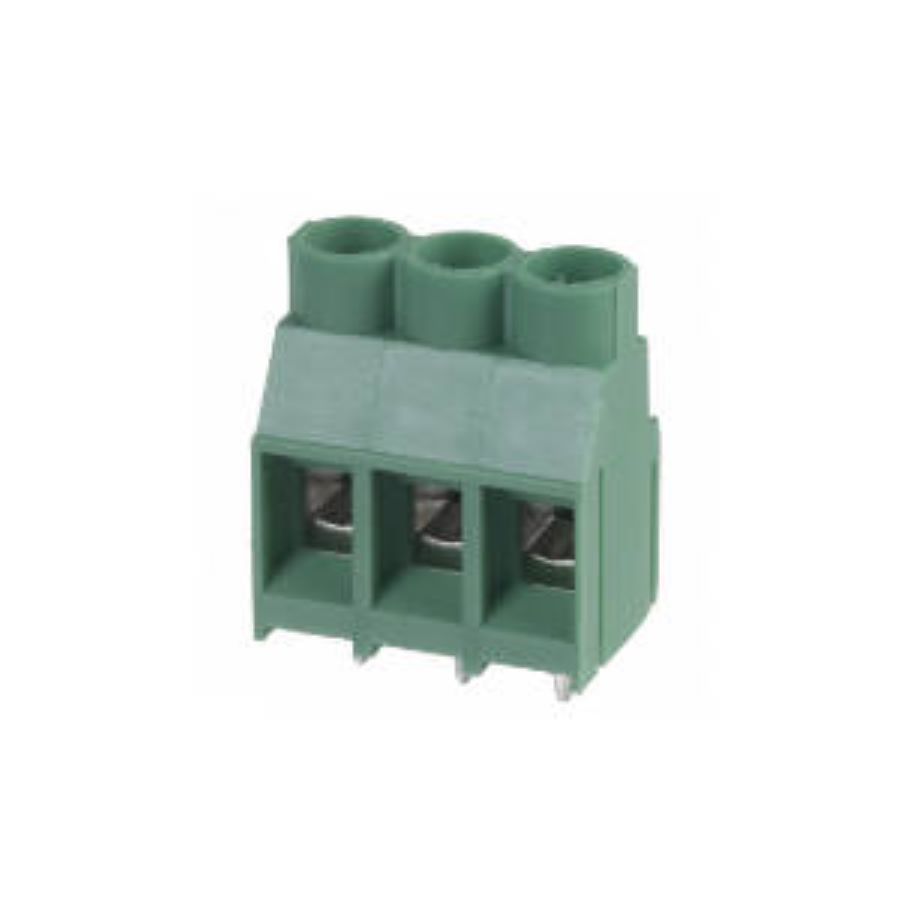

OSTT7030150
Manufacturer:
On Shore Technology
Mfr.Part #:
OSTT7030150
Datasheet:
Description:
Terminal Blocks Through Hole 3 6.35 mm 25 A 300 V 24 AWG to 12 AWG
| Parameter | Value |
|---|---|
| Length | 19.1 mm |
| Width | 12.5 mm |
| Termination | Screw |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -30 °C |
| Number of Pins | 3 |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Voltage | 300 V |
| Contact Plating | Brass |
| Contact Material(Contact Finish) | Brass |
| Pitch | 6.35 mm |
| Current | 30 A |
| Current Rating | 25 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Horizontal with Board |
| Color | Green |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Thermoplastic |
| Number of Positions Per Level | 3 |
| Number of Levels | 1 |
| Wire Gauge (Max) | 24 AWG |
| Wire Gauge (Min) | 10 AWG |
| Housing Color | Green |
| Plating | Brass, Steel |
| Connection Method | Screw |
| Wire Gauge Range | 24 AWG to 12 AWG |
Stock: 773
Distributors
pcbx
pcbxUnit Price$1.56460
Ext.Price$1.56460
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.56460 | $1.56460 |
| 10 | $1.12253 | $11.22530 |
| 25 | $0.97882 | $24.47050 |
| 50 | $0.88749 | $44.37450 |
| 100 | $0.81078 | $81.07800 |
| 300 | $0.74394 | $223.18200 |
| 500 | $0.68262 | $341.31000 |
| 1000 | $0.64494 | $644.94000 |
| 3000 | $0.61474 | $1844.22000 |
| 5000 | $0.58596 | $2929.80000 |
